Description

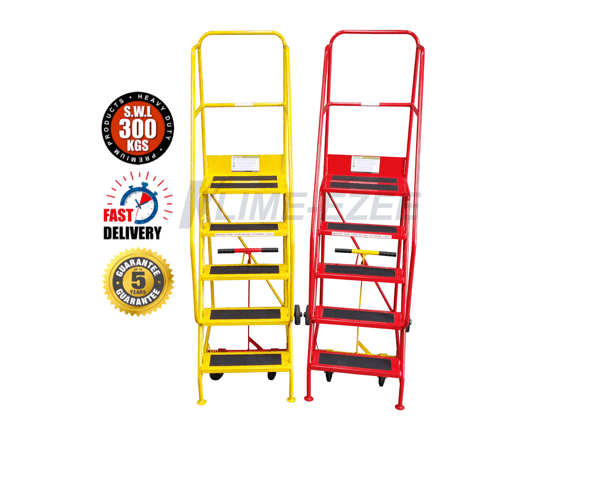

The Light Weight mobile step is based on the Industrial Range, however it is manufactured with 19mm light weight tube. Perfect for use in stores, warehouses, archives, retail and office environments.
- Platform height between 500 – 1500 mm
- Tread size 550 (w) x 200 (D) mm
- Platform size 550 (w) x 400 (D) mm
This range comes fully welded and ready to use!
| Product Code |
Treads | Working Platform Height |
Working Height |
Overall Height |
Overall Width |
Overall Length |
Weight | Brake Type |
|---|---|---|---|---|---|---|---|---|
| KL 02 | 2 | 500 | 1500 – 2250 | 1500 | 650 | 605 | 20 | Plunger castors |

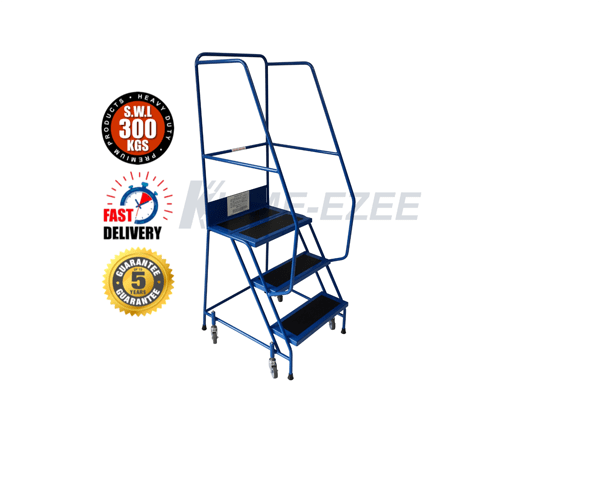

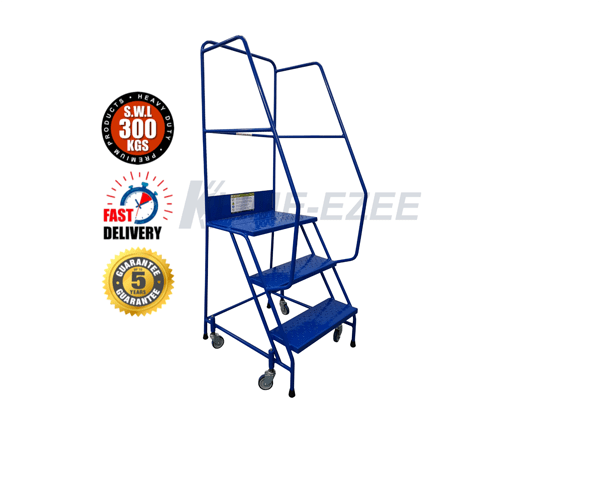

| KL 03 | 3 | 750 | 1750 – 2500 | 1750 | 650 | 758 | 28 | Plunger castors |

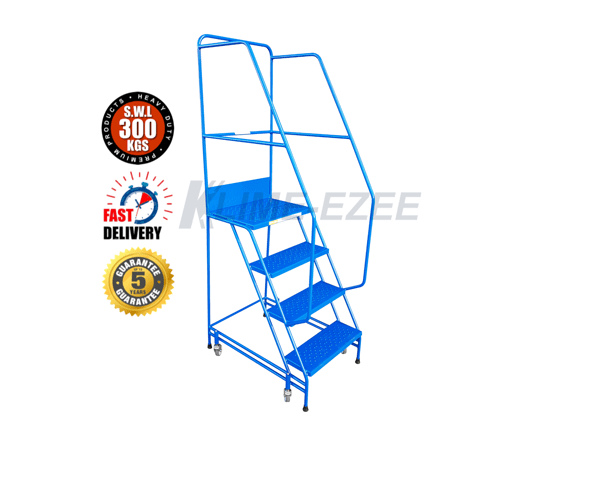

| KL 04 | 4 | 1000 | 2000 – 2750 | 2000 | 650 | 911 | 32 | Plunger castors |

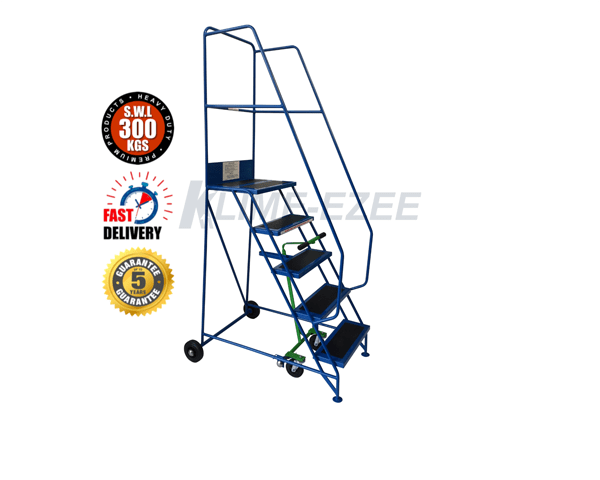

| KL 05 | 5 | 1250 | 2250 – 3000 | 2250 | 850 | 1178 | 50 | Central brake |
| KL 06 | 6 | 1500 | 2500 – 3250 | 2500 | 850 | 1332 | 58 | Central brake |
Please Note : All dimensions are approximate and shown in mm, with weights shown in Kg.
Due to our ever improving working environment, we may make enhancements to our products which effect its dimensions. Therefore, reserve the right to amend these at any time, to better serve our customer.
