Description
Our Tilt & Move Range has been developed with maximum stability and easy manoeuvrability in mind! Features a sturdy design to keep them comfortable, safe and ideal to use in a variety of applications.
- Platform height between 500 – 1000 mm
- Tread size 400 (w) x 200 (D) mm
- Platform size 400 (w) x 200 (D) mm
Click handrail into position, prior to use.
| Product Code |
Treads | Working Platform Height | Working Height |
Overall Height | Overall Width | Overall Length | Packed Dims H x W x L |
Weight | Brake Type |
|---|---|---|---|---|---|---|---|---|---|

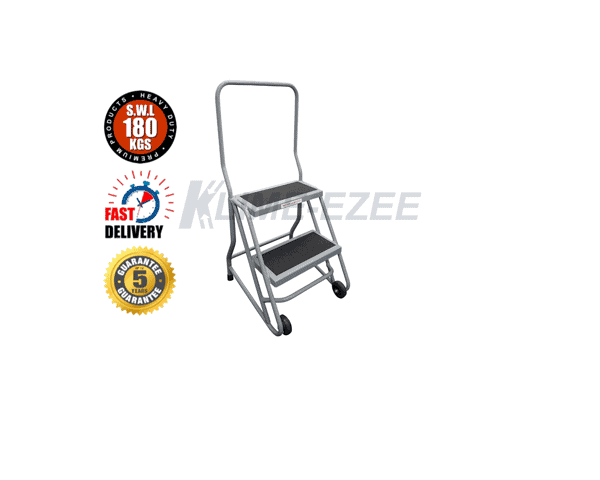

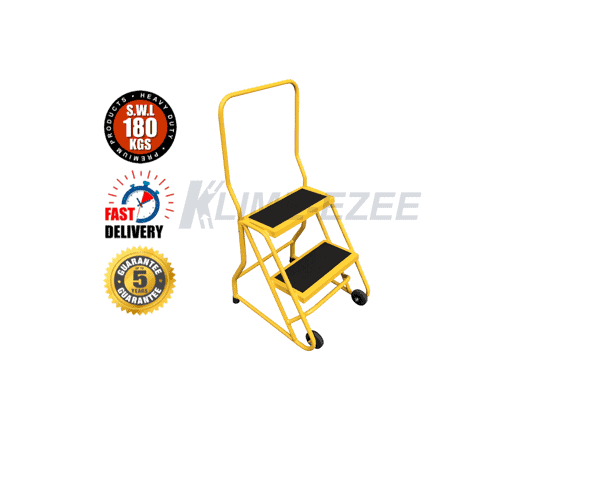

| KTM 02 | 2 | 500 | 1500 – 2250 | 1020 | 460 | 520 | 500 x 470 x 530 | 9.5 | Tilt & Pull |

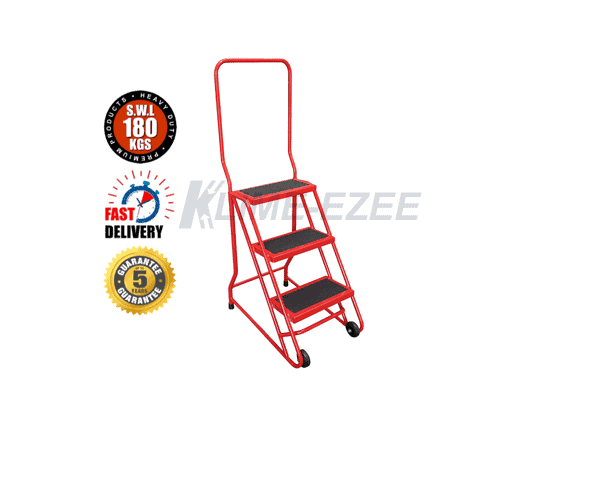

| KTM 03 | 3 | 750 | 1750 – 2500 | 1350 | 460 | 660 | 750 x 470 x 670 | 13 | Tilt & Pull |

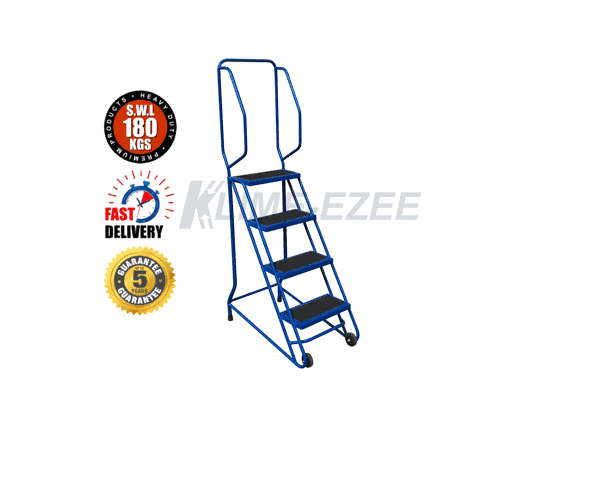

| KTM 04 | 4 | 1000 | 2000 – 2750 | 1700 | 460 | 800 | 1000 x 470 x 810 | 17 | Tilt & Pull |
Please Note : All dimensions are approximate and shown in mm, with weights shown in Kg.
Due to our ever improving working environment, we may make enhancements to our products which effect its dimensions. Therefore, reserve the right to amend these at any time, to better serve our customer.
